DM001A · Original DM001A
Electric-Hydraulic Outboard Jack Plate
DM001A
Compact 12V electric-hydraulic jack plate for nominal 10-90 HP outboard applications, with 4-inch setback and 160 mm lift travel.

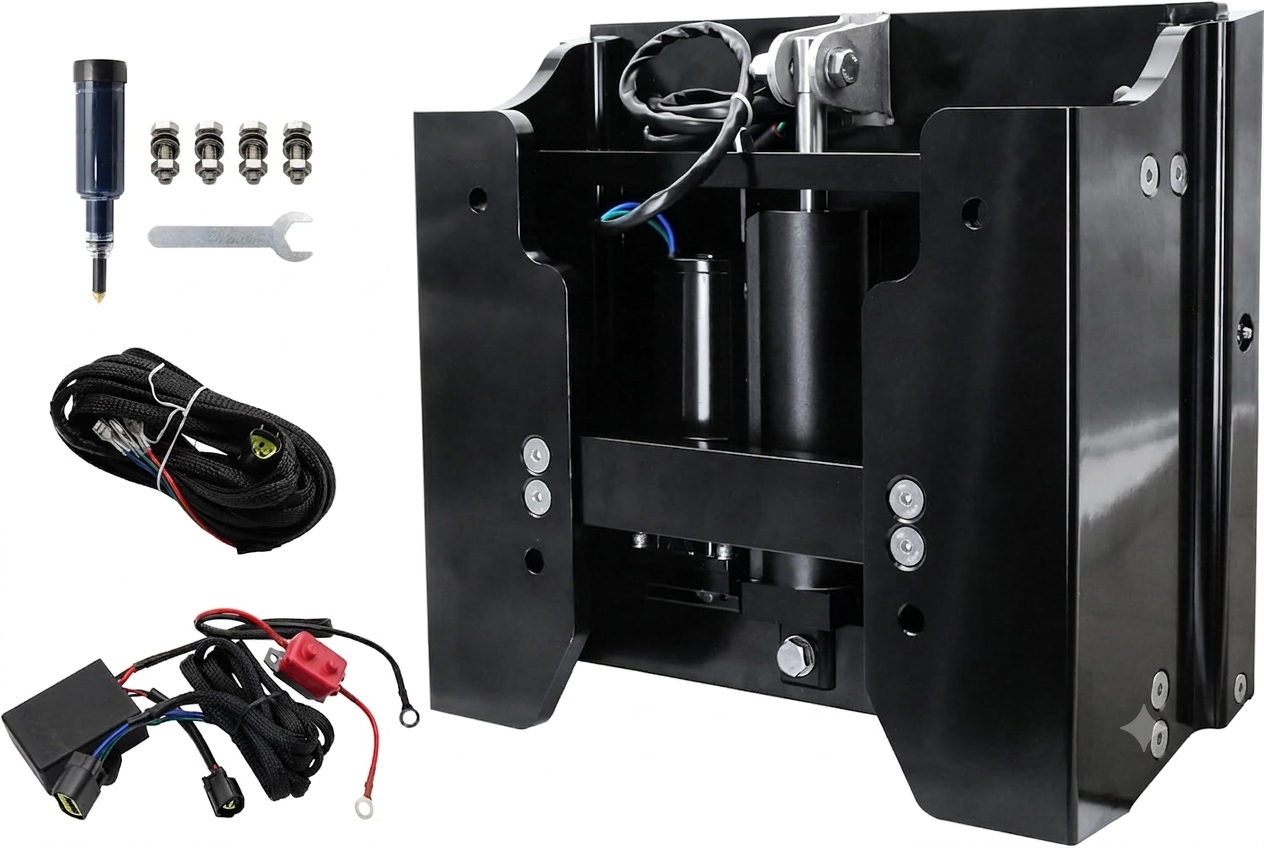

Product imagery
See the assembly
in detail.
Reference views for DM001A, matched to the current product code and catalog entry.
Product overview
Setback and lift built around the transom.
Hydraulic jack plates for positioning outboard motors across a broad horsepower range, with service-friendly manual release and corrosion-conscious construction. Compact 12V electric-hydraulic jack plate for nominal 10-90 HP outboard applications, with 4-inch setback and 160 mm lift travel.
Compatible applications
- 9.8-90 HP outboards
- Yamaha, Mercury, Honda, Suzuki, Tohatsu, Hidea and comparable mounting applications
Reference notes
- Source catalog lists a 9.8-90 HP compatible range; confirm motor model, mounting pattern and control configuration before ordering
Technical specifications
Specifications are shown as a product-selection reference. Confirm final compatibility, drawings, voltage and commercial terms with our team before ordering.
View catalog page 7DM001A selection FAQ
Questions before ordering.
Use these answers as a selection guide, then confirm the final engine and mounting details with our team.
Is DM001A compatible with my outboard?+
The current reference applications are 9.8-90 HP outboards; Yamaha, Mercury, Honda, Suzuki, Tohatsu, Hidea and comparable mounting applications. Confirm the exact engine model, model year, mounting pattern and installation dimensions with our team before ordering.
What information is needed to review DM001A?+
Please provide the outboard brand, exact model, model year, horsepower, system voltage, mounting dimensions and any available OEM reference number. Photos of the current installation can also help the review.
Where can I review the dimensions and technical data for DM001A?+
Review catalog page 7 and the specifications shown on this page. Ask our team to confirm final mounting dimensions before production.
