DM001B · Original DM001B
Kick-Back Electric-Hydraulic Outboard Jack Plate
DM001B
12V electric-hydraulic jack plate for nominal 10-90 HP outboard applications, combining 160 mm lift travel with a 43-degree kick-back angle.

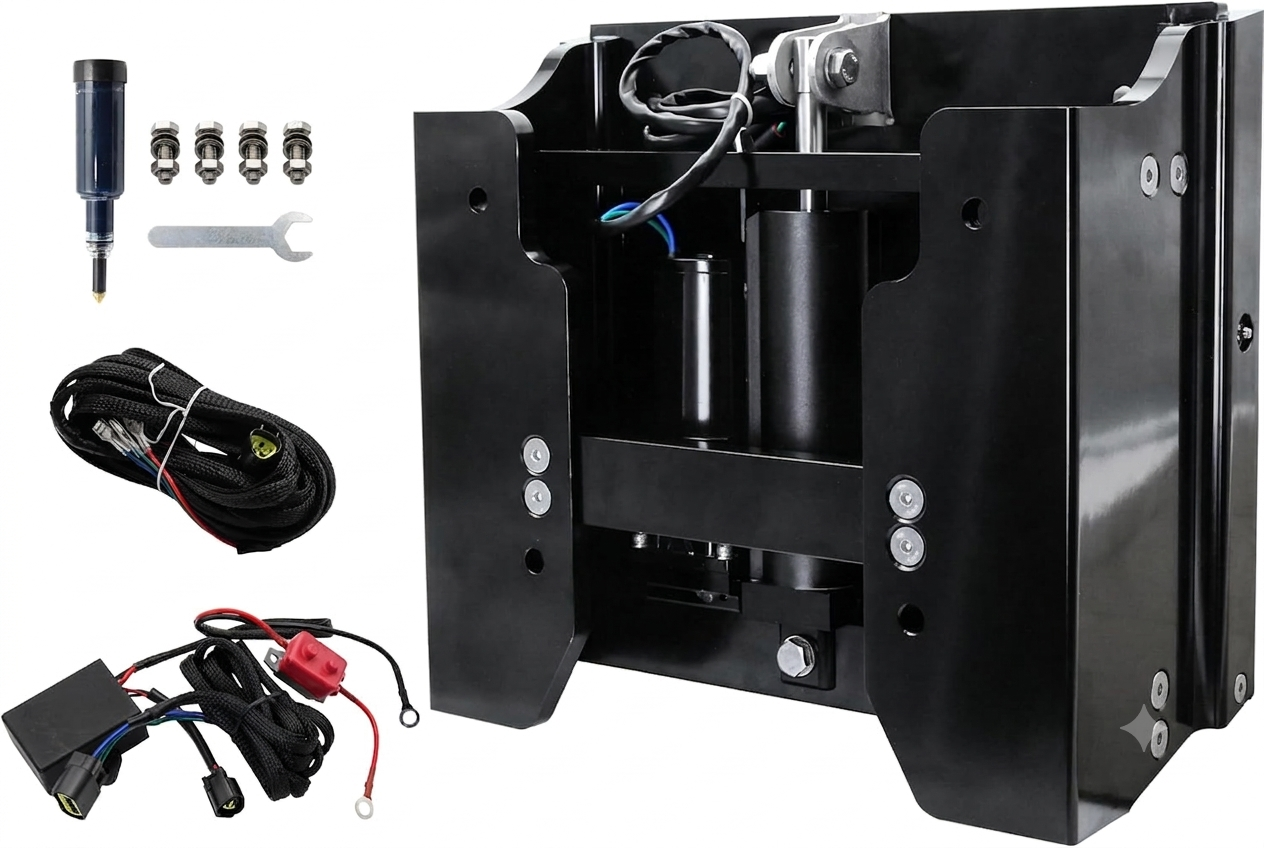

Product imagery
See the assembly
in detail.
Reference views for DM001B, matched to the current product code and catalog entry.
Product overview
Setback and lift built around the transom.
Hydraulic jack plates for positioning outboard motors across a broad horsepower range, with service-friendly manual release and corrosion-conscious construction. 12V electric-hydraulic jack plate for nominal 10-90 HP outboard applications, combining 160 mm lift travel with a 43-degree kick-back angle.
Compatible applications
- 9.8-90 HP outboards
- Yamaha, Mercury, Honda, Suzuki, Tohatsu, Hidea and comparable mounting applications
Reference notes
- Source catalog lists a 9.8-90 HP compatible range; confirm motor model and mounting pattern before ordering
Technical specifications
Specifications are shown as a product-selection reference. Confirm final compatibility, drawings, voltage and commercial terms with our team before ordering.
View catalog page 7DM001B selection FAQ
Questions before ordering.
Use these answers as a selection guide, then confirm the final engine and mounting details with our team.
Is DM001B compatible with my outboard?+
The current reference applications are 9.8-90 HP outboards; Yamaha, Mercury, Honda, Suzuki, Tohatsu, Hidea and comparable mounting applications. Confirm the exact engine model, model year, mounting pattern and installation dimensions with our team before ordering.
What information is needed to review DM001B?+
Please provide the outboard brand, exact model, model year, horsepower, system voltage, mounting dimensions and any available OEM reference number. Photos of the current installation can also help the review.
Where can I review the dimensions and technical data for DM001B?+
Review catalog page 7 and the specifications shown on this page. Ask our team to confirm final mounting dimensions before production.
